Technical characteristics

Frame Range	H180~250	Power Range	15~110kW
Rated Voltage	380V（Special voltage customization）	Rated Frequency	50Hz（Special frequency customization）
Poles	4	Protection Degree	IP54
Cooling Mode	IC411	Insulation Mlass	F
Operation Mode	S1	Installation Mode	B3
Wiring Mode	Y/?

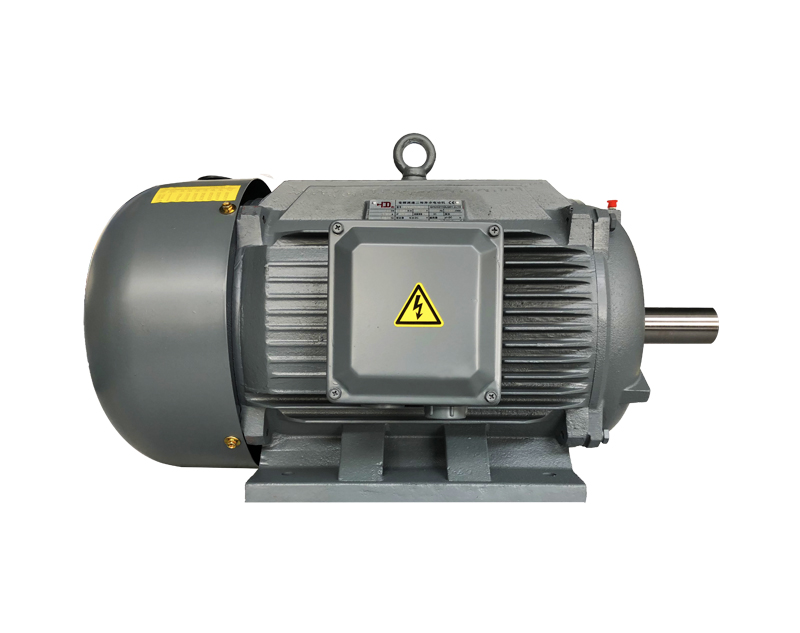

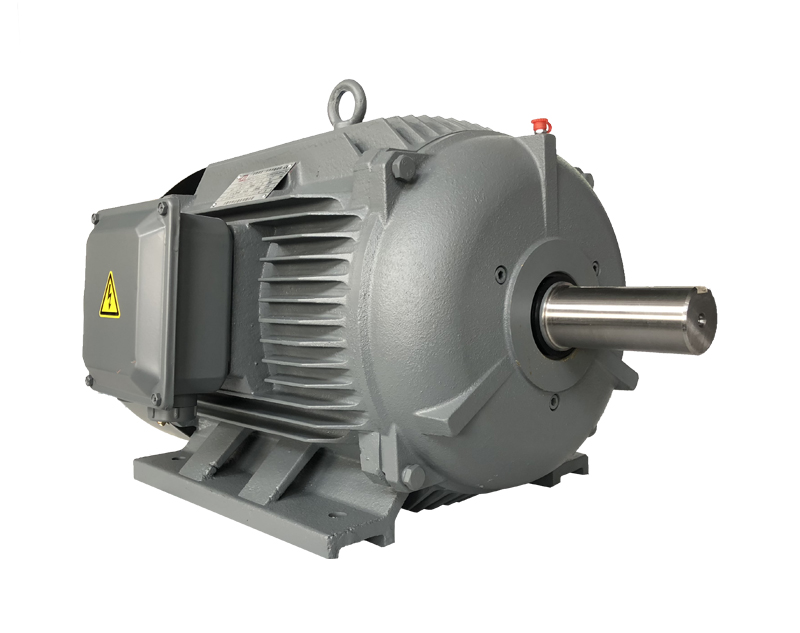

FE2VP / FE3VP series variable frequency speed regulation three-phase asynchronous motor

This series of motors are specially equipped for the spinning frame controlled by frequency conversion. They are fully enclosed, self fan cooled and easy to inject oil. They are suitable for all kinds of textile machinery such as cotton, wool, hemp and silk. They can work reliably in the environment with much dust, short fiber and high temperature and humidity. The frequency conversion range is 5Hz ~ 100Hz, and the rated frequency is 50Hz. Constant torque speed regulation when operating at 5Hz ~ 50Hz; Constant power speed regulation during 50Hz ~ 100Hz operation. The motor has the advantages of low temperature rise, small volume, low noise and strong anti cotton blocking ability. It is equipped with front and rear bearing oil filling devices without shutdown, which can effectively improve the service life of the bearing.

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

FE2VP series variable frequency speed regulation three-phase asynchronous motor

Model	Poles	Rated Power	Current	Rated Speed	Rated Torque	Efficiency	Power Factor	Protection Degree	Insulation Class	Duty	Connection	Frequency	Constant Torque	Constant Power	Rated Voltage
		Rated Power	Current	Rated Speed	Rated Torque	Efficiency	Power Factor					Frequency	Constant Torque	Constant Power	Rated Voltage
		kW	A	r/min	N·m	η	cosΦ					Hz	Hz	Hz	V
FE2VP180M0-4	4	11	22.4	1475	70.0	89.8	0.83	IP55	F	S1	?	50	5~50	50~100	380
FE2VP180M1-4	4	15	29.9	1470	95.5	90.6	0.84	IP55	F	S1	?	50	5~50	50~100	380
FE2VP180M2-4	4	17	33.3	1475	108.2	91.2	0.85	IP55	F	S1	?	50	5~50	50~100	380
FE2VP180L1-4	4	18.5	36.3	1470	117.8	91.2	0.85	IP55	F	S1	?	50	5~50	50~100	380
FE2VP180L2-4	4	22	42.9	1470	140.1	91.6	0.85	IP55	F	S1	?	50	5~50	50~100	380
FE2VP180L3-4	4	25	48.7	1475	159.2	91.8	0.85	IP55	F	S1	?	50	5~50	50~100	380
FE2VP180L4-4	4	30	58.1	1470	191.0	92.3	0.85	IP55	F	S1	?	50	5~50	50~100	380
FE2VP225S-4	4	37	70.5	1475	235.6	92.7	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE2VP225M-4	4	45	85.4	1475	286.5	93.1	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE2VP225M2-4	4	55	103.9	1475	350.2	93.5	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE2VP225M3-4	4	65	121.4	1475	413.8	93.5	0.87	IP55	F	S1	?	50	5~50	50~100	380
FE2VP250M3-4	4	75	139.3	1485	477.5	94	0.87	IP55	F	S1	?	50	5~50	50~100	380
FE2VP250M4-4	4	90	165.0	1485	573.0	94.2	0.88	IP55	F	S1	?	50	5~50	50~100	380
FE2VP250M5-4	4	110	198.7	1485	700.3	94.5	0.89	IP55	F	S1	?	50	5~50	50~100	380

FE3VP series variable frequency speed regulation three-phase asynchronous motor

Model	Poles	Rated Power	Current	Rated Speed	Rated Torque	Efficiency	Power Factor	Protection Degree	Insulation Class	Duty	Connection	Frequency	Constant Torque	Constant Power	Rated Voltage
		Rated Power	Current	Rated Speed	Rated Torque	Efficiency	Power Factor					Frequency	Constant Torque	Constant Power	Rated Voltage
		kW	A	r/min	N·m	η	cosΦ					Hz	Hz	Hz	V
FE3VP180M0-4	4	11	21.5	1470	70.0	91.4	0.85	IP55	F	S1	?	50	5~50	50~100	380
FE3VP180M1-4	4	15	28.8	1470	95.5	92.1	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE3VP180M2-4	4	17	32.5	1470	108.2	92.4	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE3VP180L1-4	4	18.5	35.3	1470	117.8	92.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE3VP180L2-4	4	22	41.8	1470	140.1	93.0	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE3VP180L3-4	4	25	47.4	1475	159.2	93.2	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE3VP180L4-4	4	30	56.6	1470	191.0	93.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE3VP225S-4	4	37	69.6	1470	235.6	93.9	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE3VP225M-4	4	45	84.4	1475	286.5	94.2	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE3VP225M2-4	4	55	102.7	1475	350.2	94.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
FE3VP225M3-4	4	65	119.7	1475	413.8	94.8	0.87	IP55	F	S1	?	50	5~50	50~100	380
FE3VP250M3-4	4	75	136.3	1475	477.5	95.0	0.88	IP55	F	S1	?	50	5~50	50~100	380
FE3VP250M4-4	4	90	163.2	1475	573.0	95.2	0.88	IP55	F	S1	?	50	5~50	50~100	380
FE3VP250M5-4	4	110	196.8	1485	700.3	95.4	0.89	IP55	F	S1	?	50	5~50	50~100	380
