技術特征

機座范圍	H80~355	功率范圍	0.55~450kW
額定電壓	380V	額定轉速	3000、1500、1000、750
效率等級	1級能效	防護等級	IP55
冷卻方式	IC411、IC416	絕緣等級	F
工作方式	S1	安裝方式	B3、B5、B35、B14、B34、V1
接線方式	Y

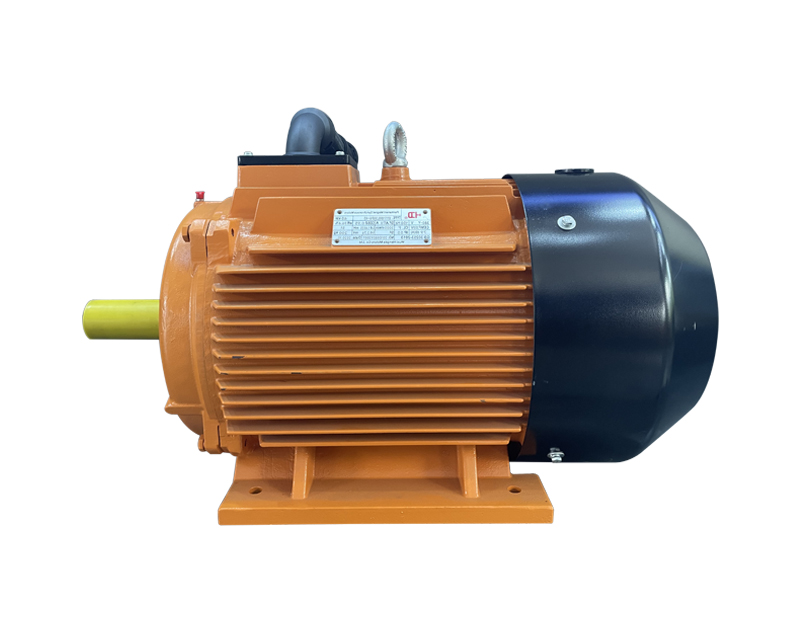

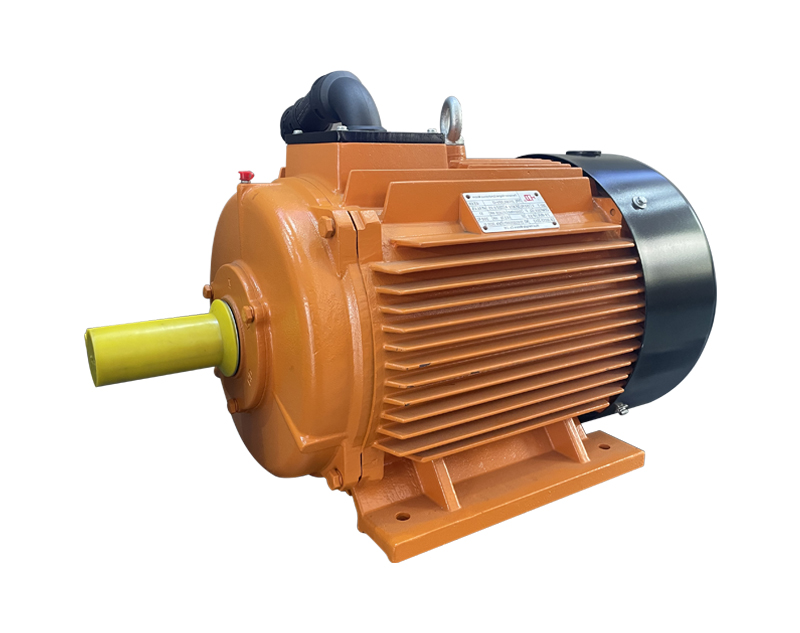

變頻驅動永磁同步電動機

本系列電機以同步電轉速運轉，定子轉子無滑差，在穩定運行時沒有轉子銅耗和鐵耗，進而可以減小風扇，相應的風摩耗可減小。基于稀土永磁電動機不需要無功勵磁電流，所以可顯著提高功率因數至極限值（1.0）；能適應多種負載工況要求，有明顯的節能效果，運行可靠安全、替代成本低，投資回收期短，得到國家“電機系統節能工程”的推薦。

運行條件

-15°C~+40°C

環境空氣溫度

≤90% (當溫度為25°c時)

環境空氣月平均最高相對濕度

≤1KM

海拔

型號	極數	額定功率 kW	額定電壓 V	額定電流 A	頻率 Hz	接法	額定轉速 rpm	額定轉矩 N.m	效率	功率因數	防護等級	絕緣等級	工作制
XYT80M30P8-0.75	8	0.75	380	1.5	200.0	Y	3000	2.4	85.9%	0.95	IP55	F	S1
XYT80M30P8-1.1	8	1.1	380	2.1	200.0	Y	3000	3.5	87.4%	0.95	IP55	F	S1
XYT90S30P6-1.5	6	1.5	380	2.8	150.0	Y	3000	4.8	88.6%	0.95	IP55	F	S1
XYT90L30P6-2.2	6	2.2	380	4.1	150.0	Y	3000	7.0	89.9%	0.95	IP55	F	S1
XYT90L30P6-3	6	3	380	5.5	150.0	Y	3000	9.6	90.8%	0.95	IP55	F	S1
XYT90L30P6-4	6	4	380	7.3	150.0	Y	3000	12.7	91.5%	0.95	IP55	F	S1
XYT100L30P6-3	6	3	380	5.5	150.0	Y	3000	9.6	90.8%	0.95	IP55	F	S1
XYT100L30P6-3.5	6	3.5	380	6.4	150.0	Y	3000	11.1	91.2%	0.95	IP55	F	S1
XYT100L30P6-4	6	4	380	7.3	150.0	Y	3000	12.7	91.5%	0.95	IP55	F	S1
XYT112M30P6-4	6	4	380	7.3	150.0	Y	3000	12.7	91.5%	0.95	IP55	F	S1
XYT112M30P6-5.5	6	5.5	380	9.9	150.0	Y	3000	17.5	92.4%	0.95	IP55	F	S1
XYT112M30P6-7.5	6	7.5	380	13.4	150.0	Y	3000	23.9	93.1%	0.95	IP55	F	S1
XYT112M30P8-5.5	8	5.5	380	9.9	200.0	Y	3000	17.5	92.4%	0.95	IP55	F	S1
XYT112M30P8-7.5	8	7.5	380	13.4	200.0	Y	3000	23.9	93.1%	0.95	IP55	F	S1
XYT132S30P6-5.5	6	5.5	380	9.9	150.0	Y	3000	17.5	92.4%	0.95	IP55	F	S1
XYT132S30P6-7.5	6	7.5	380	13.4	150.0	Y	3000	23.9	93.1%	0.95	IP55	F	S1
XYT132S30P6-7.5	6	7.5	380	13.4	150.0	Y	3000	23.9	93.1%	0.95	IP55	F	S1
XYT132M30P6-9	6	9	380	16.1	150.0	Y	3000	28.7	93.4%	0.95	IP55	F	S1
XYT132M30P6-11	6	11	380	19.5	150.0	Y	3000	35.0	93.8%	0.95	IP55	F	S1
XYT132M30P6-15	6	15	380	26.5	150.0	Y	3000	47.8	94.3%	0.95	IP55	F	S1
XYT132M30P8-9	8	9	380	16.1	200.0	Y	3000	28.7	93.4%	0.95	IP55	F	S1
XYT132M30P8-11	8	11	380	19.5	200.0	Y	3000	35.0	93.8%	0.95	IP55	F	S1
XYT132M30P8-15	8	15	380	26.5	200.0	Y	3000	47.8	94.3%	0.95	IP55	F	S1
XYT160M30P6-11	6	11	380	19.5	150.0	Y	3000	35.0	93.8%	0.95	IP55	F	S1
XYT160M30P6-15	6	15	380	26.5	150.0	Y	3000	47.8	94.3%	0.95	IP55	F	S1
XYT160M30P6-30	6	30	380	52.4	150.0	Y	3000	95.5	95.3%	0.95	IP55	F	S1
XYT160L30P6-18.5	6	18.5	380	32.5	150.0	Y	3000	58.9	94.7%	0.95	IP55	F	S1
XYT160L30P6-22	6	22	380	38.6	150.0	Y	3000	70.0	94.9%	0.95	IP55	F	S1
XYT160L30P6-30	6	30	380	52.4	150.0	Y	3000	95.5	95.3%	0.95	IP55	F	S1
XYT180M30P6-22	6	22	380	38.6	150.0	Y	3000	70.0	94.9%	0.95	IP55	F	S1
XYT180L30P6-25	6	25	380	43.7	150.0	Y	3000	79.6	95.2%	0.95	IP55	F	S1
XYT180M30P6-26	6	26	380	45.5	150.0	Y	3000	82.8	95.2%	0.95	IP55	F	S1
XYT180L30P6-30	6	30	380	52.4	150.0	Y	3000	95.5	95.3%	0.95	IP55	F	S1
XYT180L30P6-37	6	37	380	64.4	150.0	Y	3000	117.8	95.7%	0.95	IP55	F	S1
XYT200L30P6-30	6	30	380	52.4	150.0	Y	3000	95.5	95.3%	0.95	IP55	F	S1
XYT200L30P6-37	6	37	380	64.4	150.0	Y	3000	117.8	95.7%	0.95	IP55	F	S1
XYT200L30P6-45	6	45	380	78.2	150.0	Y	3000	143.3	95.9%	0.95	IP55	F	S1
XYT200L30P6-75	6	75	400	123.1	150.0	Y	3000	238.8	96.4%	0.95	IP55	F	S1
XYT200L30P6-90	6	90	400	147.6	150.0	Y	3000	286.5	96.5%	0.95	IP55	F	S1
XYT225S30P8-45	8	45	380	78.2	200.0	Y	3000	143.3	95.9%	0.95	IP55	F	S1
XYT225S30P8-55	8	55	380	95.3	200.0	Y	3000	175.1	96.1%	0.95	IP55	F	S1
XYT225S30P8-75	8	75	380	129.6	200.0	Y	3000	238.8	96.4%	0.95	IP55	F	S1
XYT225M30P8-45	8	45	380	78.2	200.0	Y	3000	143.3	95.9%	0.95	IP55	F	S1
XYT225M30P8-55	8	55	380	95.3	200.0	Y	3000	175.1	96.1%	0.95	IP55	F	S1
XYT225M30P8-75	8	75	380	129.6	200.0	Y	3000	238.8	96.4%	0.95	IP55	F	S1
XYT225M30P8-90	8	90	380	155.4	200.0	Y	3000	286.5	96.5%	0.95	IP55	F	S1
XYT250M30P8-55	8	55	380	95.3	200.0	Y	3000	175.1	96.1%	0.95	IP55	F	S1
XYT250M30P8-75	8	75	380	129.6	200.0	Y	3000	238.8	96.4%	0.95	IP55	F	S1
XYT250M30P8-90	8	90	380	155.4	200.0	Y	3000	286.5	96.5%	0.95	IP55	F	S1
XYT250M30P8-110	8	110	380	190.1	200.0	Y	3000	350.2	96.4%	0.95	IP55	F	S1
XYT280S30P8-75	8	75	380	129.6	200.0	Y	3000	238.8	96.4%	0.95	IP55	F	S1
XYT280M30P8-90	8	90	380	155.4	200.0	Y	3000	286.5	96.5%	0.95	IP55	F	S1
XYT280M30P8-110	8	110	380	190.1	200.0	Y	3000	350.2	96.4%	0.95	IP55	F	S1
XYT280M30P8-132	8	132	380	227.9	200.0	Y	3000	420.2	96.5%	0.95	IP55	F	S1
XYT280M30P8-160	8	160	380	275.9	200.0	Y	3000	509.3	96.6%	0.95	IP55	F	S1
XYT280M30P8-200	8	200	380	343.9	200.0	Y	3000	636.7	96.9%	0.95	IP55	F	S1
XYT315S30P8-110	8	110	380	190.1	200.0	Y	3000	350.2	96.4%	0.95	IP55	F	S1
XYT315S30P8-132	8	132	380	227.9	200.0	Y	3000	420.2	96.5%	0.95	IP55	F	S1
XYT315M30P8-132	8	132	380	227.9	200.0	Y	3000	420.2	96.5%	0.95	IP55	F	S1
XYT315M30P8-160	8	160	380	275.9	200.0	Y	3000	509.3	96.6%	0.95	IP55	F	S1
XYT315M30P8-200	8	200	380	343.9	200.0	Y	3000	636.7	96.9%	0.95	IP55	F	S1
XYT315L30P8-160	8	160	380	275.9	200.0	Y	3000	509.3	96.6%	0.95	IP55	F	S1
XYT315L30P8-200	8	200	380	343.9	200.0	Y	3000	636.7	96.9%	0.95	IP55	F	S1
XYT315L30P8-250	8	250	380	429.8	200.0	Y	3000	795.8	96.9%	0.95	IP55	F	S1
XYT80M15P8-1.5	8	1.5	380	2.8	100.0	Y	1500	9.6	90.1%	0.95	IP55	F	S1
XYT90S15P8-1.1	8	1.1	380	2.1	100.0	Y	1500	7.0	89.2%	0.95	IP55	F	S1
XYT90L15P8-1.5	8	1.5	380	2.8	100.0	Y	1500	9.6	90.1%	0.95	IP55	F	S1
XYT90L15P8-2.2	8	2.2	380	4.0	100.0	Y	1500	14.0	91.1%	0.95	IP55	F	S1
XYT90L15P8-3	8	3	380	5.4	100.0	Y	1500	19.1	91.8%	0.95	IP55	F	S1
XYT90L15P8-3	8	3	220	9.4	100.0	Y	1500	19.1	91.8%	0.95	IP55	F	S1
XYT100L15P8-2.2	8	2.2	380	4.0	100.0	Y	1500	14.0	91.1%	0.95	IP55	F	S1
XYT100L15P8-3	8	3	380	5.4	100.0	Y	1500	19.1	91.8%	0.95	IP55	F	S1
XYT100L15P8-4	8	4	380	7.2	100.0	Y	1500	25.5	92.6%	0.95	IP55	F	S1
XYT112M15P8-4	8	4	380	7.2	100.0	Y	1500	25.5	92.6%	0.95	IP55	F	S1
XYT112M15P8-4	8	4	400	6.90	100.0	Y	1500	25.5	92.6%	0.95	IP55	F	S1
XYT112M15P8-5.5	8	5.5	380	9.8	100.0	Y	1500	35.0	93.2%	0.95	IP55	F	S1
XYT132S15P8-5.5	8	5.5	380	9.8	100.0	Y	1500	35.0	93.2%	0.95	IP55	F	S1
XYT132M15P8-7.5	8	7.5	380	13.3	100.0	Y	1500	47.8	93.8%	0.95	IP55	F	S1
XYT132M15P8-7.5	8	7.5	400	12.7	100.0	Y	1500	47.8	93.8%	0.95	IP55	F	S1
XYT132M15P8-7.5	8	7.5	380	13.3	100.0	Y	1500	47.8	93.8%	0.95	IP55	F	S1
XYT132M15P8-9	8	9	380	15.9	100.0	Y	1500	57.3	94.1%	0.95	IP55	F	S1
XYT132M15P8-11	8	11	380	19.4	100.0	Y	1500	70.0	94.4%	0.95	IP55	F	S1
XYT132M15P8-15	8	15	380	26.3	100.0	Y	1500	95.5	94.9%	0.95	IP55	F	S1
XYT132M15P8-18.5	8	18.5	380	32.4	100.0	Y	1500	117.8	95.1%	0.95	IP55	F	S1
XYT160M15P8-11	8	11	380	19.4	100.0	Y	1500	70.0	94.4%	0.95	IP55	F	S1
XYT160M15P8-11	8	11	400	18.4	100.0	Y	1500	70.0	94.4%	0.95	IP55	F	S1
XYT160M15P8-15	8	15	380	26.3	100.0	Y	1500	95.5	94.9%	0.95	IP55	F	S1
XYT160M15P8-18.5	8	18.5	380	32.4	100.0	Y	1500	117.8	95.1%	0.95	IP55	F	S1
XYT160L15P8-15	8	15	380	26.3	100.0	Y	1500	95.5	94.9%	0.95	IP55	F	S1
XYT160L15P8-18.5	8	18.5	380	32.4	100.0	Y	1500	117.8	95.1%	0.95	IP55	F	S1
XYT160L15P8-22	8	22	380	38.5	100.0	Y	1500	140.1	95.3%	0.95	IP55	F	S1
XYT180M15P8-15	8	15	380	26.3	100.0	Y	1500	95.5	94.9%	0.95	IP55	F	S1
XYT180M15P8-17	8	17	380	29.8	100.0	Y	1500	108.2	95.0%	0.95	IP55	F	S1
XYT180M15P8-18.5	8	18.5	380	32.4	100.0	Y	1500	117.8	95.1%	0.95	IP55	F	S1
XYT180M15P8-18.5	8	18.5	400	30.8	100.0	Y	1500	117.8	95.1%	0.95	IP55	F	S1
XYT180M15P8-22	8	22	380	38.5	100.0	Y	1500	140.1	95.3%	0.95	IP55	F	S1
XYT180L15P8-22	8	22	380	38.5	100.0	Y	1500	140.1	95.3%	0.95	IP55	F	S1
XYT180L15P8-22	8	22	380	38.5	100.0	Y	1500	140.1	95.3%	0.95	IP55	F	S1
XYT180L15P8-25	8	25	380	43.6	100.0	Y	1500	159.2	95.5%	0.95	IP55	F	S1
XYT180L15P8-30	8	30	380	52.2	100.0	Y	1500	191.0	95.8%	0.95	IP55	F	S1
XYT180L15P8-37	8	37	380	64.2	100.0	Y	1500	235.6	96.0%	0.95	IP55	F	S1
XYT180L15P8-45	8	45	380	77.9	100.0	Y	1500	286.5	96.2%	0.95	IP55	F	S1
XYT180L15P8-55	8	55	380	95.1	100.0	Y	1500	350.2	96.4%	0.95	IP55	F	S1
XYT180L15P8-65	8	65	380	112.2	100.0	Y	1500	413.8	96.5%	0.95	IP55	F	S1
XYT180L15P8-75	8	75	380	129.3	100.0	Y	1500	477.5	96.6%	0.95	IP55	F	S1
XYT180L15P8-90	8	90	380	151.7	100.0	Y	1500	573.0	96.8%	0.97	IP55	F	S1
XYT200L15P8-30	8	30	380	52.2	100.0	Y	1500	191.0	95.8%	0.95	IP55	F	S1
XYT200L15P8-30	8	30	400	49.6	100.0	Y	1500	191.0	95.8%	0.95	IP55	F	S1
XYT200L15P8-37	8	37	380	64.2	100.0	Y	1500	235.6	96.0%	0.95	IP55	F	S1
XYT200L15P8-37	8	37	380	64.2	100.0	Y	1500	235.6	96.0%	0.95	IP55	F	S1
XYT200L15P8-45	8	45	380	77.9	100.0	Y	1500	286.5	96.2%	0.95	IP55	F	S1
XYT225S15P8-37	8	37	380	64.2	100.0	Y	1500	235.6	96.0%	0.95	IP55	F	S1
XYT225S15P8-37	8	37	400	61.0	100.0	Y	1500	235.6	96.0%	0.95	IP55	F	S1
XYT225S15P8-45	8	45	380	77.9	100.0	Y	1500	286.5	96.2%	0.95	IP55	F	S1
XYT225M15P8-45	8	45	380	77.9	100.0	Y	1500	286.5	96.2%	0.95	IP55	F	S1
XYT225M15P8-55	8	55	380	95.1	100.0	Y	1500	350.2	96.4%	0.95	IP55	F	S1
XYT225M15P8-65	8	65	380	112.2	100.0	Y	1500	413.8	96.5%	0.95	IP55	F	S1
XYT225M15P8-75	8	75	380	129.3	100.0	Y	1500	477.5	96.6%	0.95	IP55	F	S1
XYT250M15P8-55	8	55	380	95.1	100.0	Y	1500	350.2	96.4%	0.95	IP55	F	S1
XYT250M15P8-75	8	75	380	129.3	100.0	Y	1500	477.5	96.6%	0.95	IP55	F	S1
XYT250M15P8-90	8	90	380	154.9	100.0	Y	1500	573.0	96.8%	0.95	IP55	F	S1
XYT250M15P8-90	8	90	380	154.9	100.0	Y	1500	573.0	96.8%	0.95	IP55	F	S1
XYT280S15P8-75	8	75	380	129.3	100.0	Y	1500	477.5	96.6%	0.95	IP55	F	S1
XYT280S15P8-75	8	75	400	122.9	100.0	Y	1500	477.5	96.6%	0.95	IP55	F	S1
XYT280M15P8-90	8	90	380	154.9	100.0	Y	1500	573.0	96.8%	0.95	IP55	F	S1
XYT280M15P8-90	8	90	400	147.2	100.0	Y	1500	573.0	96.8%	0.95	IP55	F	S1
XYT280M15P8-110	8	110	380	189.7	100.0	Y	1500	700.3	96.6%	0.95	IP55	F	S1
XYT280M15P8-132	8	132	380	227.4	100.0	Y	1500	840.4	96.7%	0.95	IP55	F	S1
XYT315S15P8-110	8	110	380	189.7	100.0	Y	1500	700.3	96.6%	0.95	IP55	F	S1
XYT315S15P8-132	8	132	380	227.4	100.0	Y	1500	840.4	96.7%	0.95	IP55	F	S1
XYT315M15P8-132	8	132	380	227.4	100.0	Y	1500	840.4	96.7%	0.95	IP55	F	S1
XYT315M15P8-160	8	160	380	275.1	100.0	Y	1500	1018.7	96.9%	0.95	IP55	F	S1
XYT315L15P8-160	8	160	380	275.1	100.0	Y	1500	1018.7	96.9%	0.95	IP55	F	S1
XYT315L15P8-200	8	200	380	343.2	100.0	Y	1500	1273.3	97.1%	0.95	IP55	F	S1
XYT315L15P8-220	8	220	380	377.5	100.0	Y	1500	1400.7	97.1%	0.95	IP55	F	S1
XYT315L15P8-250	8	250	380	428.9	100.0	Y	1500	1591.7	97.1%	0.95	IP55	F	S1
XYT355M15P8-220	8	220	380	377.5	100.0	Y	1500	1400.7	97.1%	0.95	IP55	F	S1
XYT355M15P8-250	8	250	380	428.9	100.0	Y	1500	1591.7	97.1%	0.95	IP55	F	S1
XYT355M15P8-280	8	280	380	480.4	100.0	Y	1500	1782.7	97.1%	0.95	IP55	F	S1
XYT355L15P8-315	8	315	380	540.5	100.0	Y	1500	2005.5	97.1%	0.95	IP55	F	S1
XYT355L15P8-315	8	355	380	609.1	100.0	Y	1500	2260.2	97.1%	0.95	IP55	F	S1
XYT355L15P8-355	8	355	380	609.1	100.0	Y	1500	2260.2	97.1%	0.95	IP55	F	S1
XYT355L15P8-400	8	400	380	686.3	100.0	Y	1500	2546.7	97.1%	0.95	IP55	F	S1
XYT355L15P8-450	8	450	380	772.1	100.0	Y	1500	2865.0	97.1%	0.95	IP55	F	S1
XYT90S10P8-0.75	8	0.75	380	1.5	66.7	Y	1000	7.2	86.0%	0.95	IP55	F	S1
XYT90L10P8-1.1	8	1.1	380	2.1	66.7	Y	1000	10.5	87.5%	0.95	IP55	F	S1
XYT90L10P8-1.5	8	1.5	380	2.8	66.7	Y	1000	14.3	88.6%	0.95	IP55	F	S1
XYT100L10P8-1.5	8	1.5	380	2.8	66.7	Y	1000	14.3	88.6%	0.95	IP55	F	S1
XYT100L10P8-2.2	8	2.2	380	4.1	66.7	Y	1000	21.0	89.9%	0.95	IP55	F	S1
XYT112M10P8-2.2	8	2.2	380	4.1	66.7	Y	1000	21.0	89.9%	0.95	IP55	F	S1
XYT112M10P8-3	8	3	380	5.5	66.7	Y	1000	28.7	90.8%	0.95	IP55	F	S1
XYT112M10P8-4	8	4	380	7.3	66.7	Y	1000	38.2	91.6%	0.95	IP55	F	S1
XYT112M10P8-5.5	8	5.5	380	9.9	66.7	Y	1000	52.5	92.4%	0.95	IP55	F	S1
XYT112L10P8-5.5	8	5.5	380	9.9	66.7	Y	1000	52.5	92.4%	0.95	IP55	F	S1
XYT132S10P8-3	8	3	380	5.5	66.7	Y	1000	28.7	90.8%	0.95	IP55	F	S1
XYT132M10P8-4	8	4	380	7.3	66.7	Y	1000	38.2	91.6%	0.95	IP55	F	S1
XYT132M10P8-5.5	8	5.5	380	9.9	66.7	Y	1000	52.5	92.4%	0.95	IP55	F	S1
XYT132M10P8-7.5	8	7.5	380	13.4	66.7	Y	1000	71.6	93.0%	0.95	IP55	F	S1
XYT160M10P8-7.5	8	7.5	380	13.4	66.7	Y	1000	71.6	93.0%	0.95	IP55	F	S1
XYT160L10P8-11	8	11	380	19.5	66.7	Y	1000	105.1	93.8%	0.95	IP55	F	S1
XYT160L10P8-11	8	11	400	18.6	66.7	Y	1000	105.1	93.8%	0.95	IP55	F	S1
XYT160L10P8-13	8	13	380	23.0	66.7	Y	1000	124.2	94.1%	0.95	IP55	F	S1
XYT160L10P8-15	8	15	380	26.5	66.7	Y	1000	143.3	94.4%	0.95	IP55	F	S1
XYT180L10P8-15	8	15	380	26.5	66.7	Y	1000	143.3	94.4%	0.95	IP55	F	S1
XYT180L10P8-15	8	15	380	26.5	66.7	Y	1000	143.3	94.4%	0.95	IP55	F	S1
XYT180L10P8-18.5	8	18.5	380	32.5	66.7	Y	1000	176.7	94.7%	0.95	IP55	F	S1
XYT180L10P8-22	8	22	380	38.6	66.7	Y	1000	210.1	95.0%	0.95	IP55	F	S1
XYT200L10P8-18.5	8	18.5	380	32.5	66.7	Y	1000	176.7	94.7%	0.95	IP55	F	S1
XYT200L10P8-22	8	22	380	38.6	66.7	Y	1000	210.1	95.0%	0.95	IP55	F	S1
XYT200L10P8-25	8	25	380	43.7	66.7	Y	1000	238.8	95.2%	0.95	IP55	F	S1
XYT200L10P8-30	8	30	380	52.4	66.7	Y	1000	286.5	95.4%	0.95	IP55	F	S1
XYT225M10P8-30	8	30	380	52.4	66.7	Y	1000	286.5	95.4%	0.95	IP55	F	S1
XYT225M10P8-37	8	37	380	64.4	66.7	Y	1000	353.4	95.7%	0.95	IP55	F	S1
XYT225M10P8-55	8	55	380	95.3	66.7	Y	1000	525.3	96.1%	0.95	IP55	F	S1
XYT225M10P8-55	8	55	415	87.3	66.7	Y	1000	525.3	96.1%	0.95	IP55	F	S1
XYT250M10P8-37	8	37	380	64.4	66.7	Y	1000	353.4	95.7%	0.95	IP55	F	S1
XYT250M10P8-45	8	45	380	78.2	66.7	Y	1000	429.8	95.9%	0.95	IP55	F	S1
XYT250M10P8-55	8	55	380	95.3	66.7	Y	1000	525.3	96.1%	0.95	IP55	F	S1
XYT280S10P8-45	8	45	380	78.2	66.7	Y	1000	429.8	95.9%	0.95	IP55	F	S1
XYT280M10P8-55	8	55	380	95.3	66.7	Y	1000	525.3	96.1%	0.95	IP55	F	S1
XYT280M10P8-75	8	75	380	129.6	66.7	Y	1000	716.3	96.4%	0.95	IP55	F	S1
XYT315S10P8-75	8	75	380	129.6	66.7	Y	1000	716.3	96.4%	0.95	IP55	F	S1
XYT315S10P8-90	8	90	380	155.2	66.7	Y	1000	859.5	96.6%	0.95	IP55	F	S1
XYT315M10P8-90	8	90	380	155.2	66.7	Y	1000	859.5	96.6%	0.95	IP55	F	S1
XYT315M10P8-90	8	90	400	147.5	66.7	Y	1000	859.5	96.6%	0.95	IP55	F	S1
XYT315M10P8-110	8	110	380	190.1	66.7	Y	1000	1050.5	96.4%	0.95	IP55	F	S1
XYT315L10P8-110	8	110	380	190.1	66.7	Y	1000	1050.5	96.4%	0.95	IP55	F	S1
XYT315L10P8-110	8	110	400	180.6	66.7	Y	1000	1050.5	96.4%	0.95	IP55	F	S1
XYT315L10P8-132	8	132	380	227.7	66.7	Y	1000	1260.6	96.6%	0.95	IP55	F	S1
XYT315L10P8-132	8	132	400	216.3	66.7	Y	1000	1260.6	96.6%	0.95	IP55	F	S1
XYT315L10P8-160	8	160	380	275.7	66.7	Y	1000	1528.0	96.7%	0.95	IP55	F	S1
XYT355M10P8-160	8	160	380	275.7	66.7	Y	1000	1528.0	96.7%	0.95	IP55	F	S1
XYT355M10P8-200	8	200	380	344.2	66.7	Y	1000	1910.0	96.8%	0.95	IP55	F	S1
XYT355M10P8-220	8	220	380	378.6	66.7	Y	1000	2101.0	96.8%	0.95	IP55	F	S1
XYT355L10P8-250	8	250	380	430.3	66.7	Y	1000	2387.5	96.8%	0.95	IP55	F	S1
XYT355L10P8-280	8	280	380	481.9	66.7	Y	1000	2674.0	96.8%	0.95	IP55	F	S1
XYT355L10P8-315	8	315	380	542.1	66.7	Y	1000	3008.3	96.8%	0.95	IP55	F	S1
XYT355L10P8-355	8	355	380	611.0	66.7	Y	1000	3390.3	96.8%	0.95	IP55	F	S1
XYT90L7.5P8-0.55	8	0.55	380	1.1	50.0	Y	750	7.0	81.9%	0.95	IP55	F	S1
XYT90L7.5P8-0.75	8	0.75	380	1.5	50.0	Y	750	9.6	83.2%	0.95	IP55	F	S1
XYT100L7.5P8-0.75	8	0.75	380	1.5	50.0	Y	750	9.6	83.2%	0.95	IP55	F	S1
XYT100L7.5P8-1.1	8	1.1	380	2.2	50.0	Y	750	14.0	85.1%	0.95	IP55	F	S1
XYT100L7.5P8-1.5	8	1.5	380	2.9	50.0	Y	750	19.1	86.5%	0.95	IP55	F	S1
XYT112M7.5P8-1.5	8	1.5	380	2.9	50.0	Y	750	19.1	86.5%	0.95	IP55	F	S1
XYT112M7.5P8-2.2	8	2.2	380	4.2	50.0	Y	750	28.0	88.1%	0.95	IP55	F	S1
XYT132S7.5P8-2.2	8	2.2	380	4.2	50.0	Y	750	28.0	88.1%	0.95	IP55	F	S1
XYT132M7.5P8-3	8	3	380	5.6	50.0	Y	750	38.2	89.2%	0.95	IP55	F	S1
XYT132M7.5P8-4	8	4	380	7.4	50.0	Y	750	50.9	90.2%	0.95	IP55	F	S1
XYT160M7.5P8-4	8	4	380	7.4	50.0	Y	750	50.9	90.2%	0.95	IP55	F	S1
XYT160M7.5P8-5.5	8	5.5	380	10.1	50.0	Y	750	70.0	91.1%	0.95	IP55	F	S1
XYT160M7.5P8-7.5	8	7.5	380	13.6	50.0	Y	750	95.5	91.9%	0.95	IP55	F	S1
XYT160L7.5P8-11	8	11	380	19.7	50.0	Y	750	140.1	92.8%	0.95	IP55	F	S1
XYT180L7.5P8-11	8	11	380	19.7	50.0	Y	750	140.1	92.8%	0.95	IP55	F	S1
XYT180L7.5P8-15	8	15	380	26.8	50.0	Y	750	191.0	93.4%	0.95	IP55	F	S1
XYT200L7.5P8-15	8	15	380	26.8	50.0	Y	750	191.0	93.4%	0.95	IP55	F	S1
XYT200L7.5P8-18.5	8	18.5	380	32.9	50.0	Y	750	235.6	93.8%	0.95	IP55	F	S1
XYT225S7.5P8-18.5	8	18.5	380	32.9	50.0	Y	750	235.6	93.8%	0.95	IP55	F	S1
XYT225M7.5P8-22	8	22	380	38.9	50.0	Y	750	280.1	94.1%	0.95	IP55	F	S1
XYT225M7.5P8-30	8	30	380	52.9	50.0	Y	750	382.0	94.5%	0.95	IP55	F	S1
XYT250M7.5P8-30	8	30	380	52.9	50.0	Y	750	382.0	94.5%	0.95	IP55	F	S1
XYT250M7.5P8-30	8	30	400	50.2	50.0	Y	750	382.0	94.5%	0.95	IP55	F	S1
XYT250M7.5P8-37	8	37	380	65.0	50.0	Y	750	471.1	94.8%	0.95	IP55	F	S1
XYT280S7.5P8-30	8	30	380	52.9	50.0	Y	750	382.0	94.5%	0.95	IP55	F	S1
XYT280S7.5P8-37	8	37	380	65.0	50.0	Y	750	471.1	94.8%	0.95	IP55	F	S1
XYT280M7.5P8-45	8	45	380	78.8	50.0	Y	750	573.0	95.1%	0.95	IP55	F	S1
XYT280M7.5P8-55	8	55	380	96.1	50.0	Y	750	700.3	95.3%	0.95	IP55	F	S1
XYT315S7.5P8-55	8	55	380	96.1	50.0	Y	750	700.3	95.3%	0.95	IP55	F	S1
XYT315S7.5P8-75	8	75	380	130.6	50.0	Y	750	955.0	95.7%	0.95	IP55	F	S1
XYT315M7.5P8-75	8	75	380	130.6	50.0	Y	750	955.0	95.7%	0.95	IP55	F	S1
XYT315M7.5P8-90	8	90	380	156.5	50.0	Y	750	1146.0	95.8%	0.95	IP55	F	S1
XYT315L7.5P8-90	8	90	380	156.5	50.0	Y	750	1146.0	95.8%	0.95	IP55	F	S1
XYT315L7.5P8-110	8	110	380	191.5	50.0	Y	750	1400.7	95.7%	0.95	IP55	F	S1
XYT315L7.5P8-132	8	132	380	229.3	50.0	Y	750	1680.8	95.9%	0.95	IP55	F	S1

聯系方式

4000-999-510
